Pure Titanium Bar
1.Pure titanium bar is made of titanium material with high strength, light weight, corrosion resistance, good biocompatibility and high temperature performance.
2.Payment terms: T/T, L/C.
3.Delivery time: 5-7 days.
Description
Production Introduction
Industrial pure titanium bar is divided into Gr1, Gr2，Gr3 and Gr4 according to its impurity content. The interstitial impurity elements of these three industrial pure titanium increase gradually, so their mechanical strength and hardness also increase step by step, but their plasticity and toughness decrease accordingly.
Brand and standard
US standard brand: GR1、GR2、GR3、GR4/ ASTM B348,ASME SB348,ASTM F67,ASTM F136,ISO-5832-2,ISO5832-3,AMS 4928...
Production specifications
Size(mm) | Tolerance( mm) | Ovality（mm） |
6.35 to 7.94 | ±0.13 | 0.20 |
7.94 to 11.11 | ±0.15 | 0.23 |
11.11 to 15.88 | ±0.18 | 0.25 |
15.88 to 22.22 | ±0.20 | 0.30 |
22.22 to 25.40 | ±0.23 | 0.33 |
25.40 to 28.58 | ±0.25 | 0.38 |
28.58 to 31.75 | ±0.28 | 0.41 |
31.75 to 34.92 | ±0.30 | 0.46 |
34.92 to 38.10 | ±0.36 | 0.53 |
38.10 to 50.80 | ±0.40 | 0.58 |
50.80 to 63.50 | +0.79, − 0 | 0.58 |
63.50 to 88.90 | +1.19, − 0 | 0.89 |
88.90 to 114.30 | +1.59, − 0 | 1.17 |
Products description
Grade | Manufacturing technique/delivery state/dia.(mm) | Standard |
GR1 GR2 GR3 GR4 | Hot fogging+ lathe / polish RM 6-200 | ASTM B348,ASME SB348,ASTM F67,ASTM F136 |

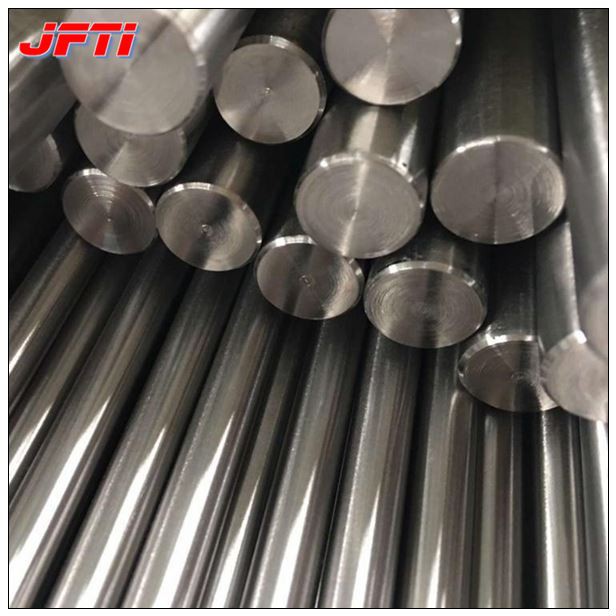

Pure titanium bar -detailed photo display:
production status
Hot working state(R) Cold working state(Y)
Annealing state(M) Solution treatment(ST)
Product feature and application
Pure titanium bar has high strength, close to the level of high-strength aluminum alloy. It is mainly used to manufacture petrochemical heat exchangers, reactors, ship parts, aircraft skins, etc. working at temperatures below 350 ℃.
Technical requirements
1 The diameter or side length of hot-working bar and its allowable deviation shall conform to the provisions of Table 1.
2: After hot processing, the allowable deviation of cold-drawn bar diameter shall conform to the provisions of Table 2
3: The roundness of hot-machined polished bars shall not exceed half of their dimensional tolerance.
4: The variable length of the processed bar is 300-6000mm, and the variable length of the annealed bar is 300-2000mm. The fixed length or multiple length should be within the range of the variable length. The allowable deviation of fixed length is +20mm; The length of double length shall also be included in the cutting quantity of the bar, and each opening quantity shall be 5mm. The fixed length or double length shall be indicated in the contract.
Packing,delivery,shipping &services
Production Introduction
1.Package using the Non destructive export wooden case.
2.Delivery by express airfreight & by sea transport,land (train)according to cargo quantities or by customer ‘ requirements .
3.For shipping by sea we can delivery from all Chinese seaports ,but preferable Shanghai.
Our advantages and qualifications :
1. We are specializing in titanium industry more than 12 years,we have our own factory to ensure all the products are qualified and with high standard.
2. We have achieved international quality and management standards ISO9001:2015, AS9100D, GJB9001C:2007 certifications.
3. We have warehouse with large quantities stock of all kinds of titanium materials,so we can provide and we can satisfy if you need large quantities to order.
4. We can offer you with the competitive price compare with others.
5. All products will issue the full sets of certificates by qualified third-party .
6. We had rich experiences and successfully traded with many clients all over the world,and we kept very good relationship and business co-operation each other .

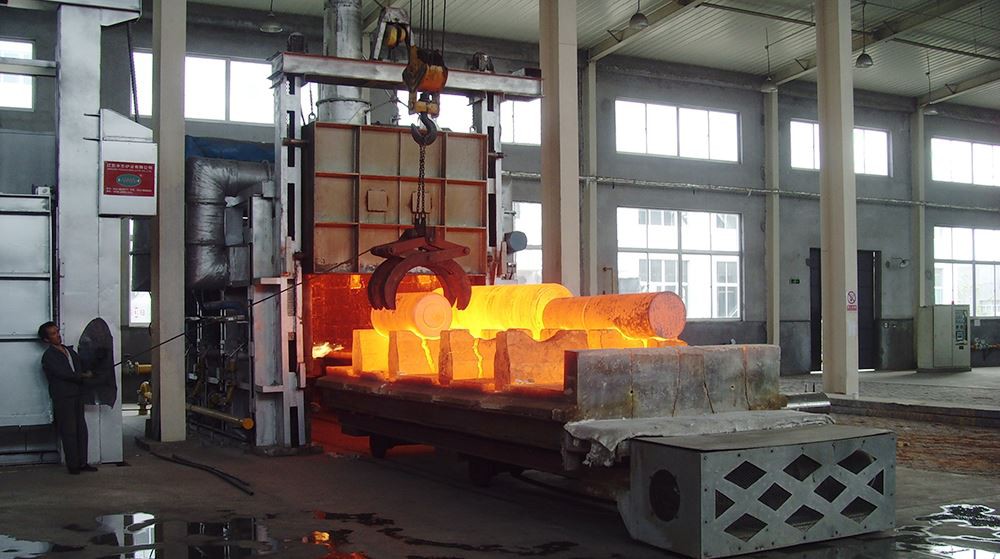

Our company & factory .
Baoji Jufuti non-ferrous metals co.,Ltd for short (JFTI Titanium Industry)is an integrated hi-tech enterprise and worldwide supplier specially engaged in research,production and development of titanium and other alloys in baoji city which knows as “the titanium valley “ in China.
