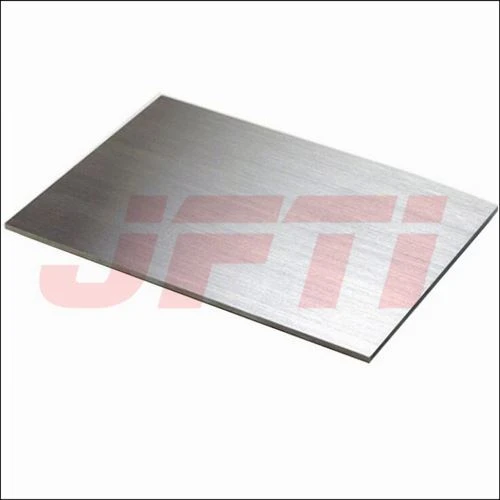

Gr 5 Titanium Plate
1.Gr 5 titanium plate also called Ti-6AL-4V titanium plate,it's the most common and useful titanium alloyed metal products.
2.Payment terms: T/T, L/C .
3.Delivery time: 5-7 days.
Description
Production Introduction
Titanium alloy plate has excellent properties of low density, high strength and is an ideal aerospace structural material. At present, the application of titanium alloy in aerospace industry is favored by people more and more. Titanium alloy has tensile plasticity, can be welded in various ways, and the service temperature can reach 250 ℃ for a long time. It is mainly used to manufacture various plate structures on aircraft and engines.
Industrial pure titanium has good plasticity, can form various sheet stamping parts in cold state, and has high corrosion resistance.
Product parameter
Grade: Gr 5
Standard: ASTM B265,ASME SB265,ASM490,AMS 4911...
Product qualifications：Certificate issued by authorized qualified third-party including Bao Ti & northwest institute for non-ferrous metals research of China.
Gr 5 titanium plate - chemical requirements
Grade
C max.
O
max.
N
max.
H
max.
Fe
AL
V
Pd
Mo
other max. each
Other
max.
Total
Gr5
0.08
0.20
0.05
0.015
0.40
5.5-6.75
3.5-4.5
/
/
0.1
0.4
Gr 5 titanium plate - tensile requirements
Grade
Tensile strength, min ksi
Tensile strength, min Mpa
Yield strength, min Ksi
Yield
Strength
min Mpa
Elongation in 50mm,
min%
Grade 5
130
895
120
828
10
Common process flow of Gr 5 titanium plate cutting
In Gr 5 titanium plate cutting, the common process flow and contents are described as follows:
(1) In case of semi-automatic cutting, the guide rail shall be placed on the titanium plate plane, and then the cutting machine shall be placed on the guide rail. Note that the sequence cannot be reversed.
(2) The cutting parameters shall be appropriate and reasonably determined according to the thickness of titanium plate, so as to obtain good cutting effect.
(3) Check whether the cutting nozzle gas is unblocked, and dredge it in time in case of blockage.
(4) The surface of titanium plate shall be cleaned before cutting, and a certain space shall be reserved, which can be conducive to the blowing out of slag.
(5) The distance between the cutting nozzle and the titanium plate surface should be appropriate. It is not good if it is too close or too far.
(6) The preheating of titanium plate shall be sufficient to avoid affecting the cutting process.
(7) If cutting work pieces of different sizes, cut small pieces first and then large ones.
Gr 5 titanium plate - Product feature and application
It has been successfully applied in aerospace, petrochemical, shipbuilding, automobile, medicine and other departments.
Full processing procedures of Gr 5 titanium plate
Titanium sponge - melting - forging - slabs - hot rolling / cold rolling - hot-rolling sheets / cold-rolling sheets - Inspection - Warehousing

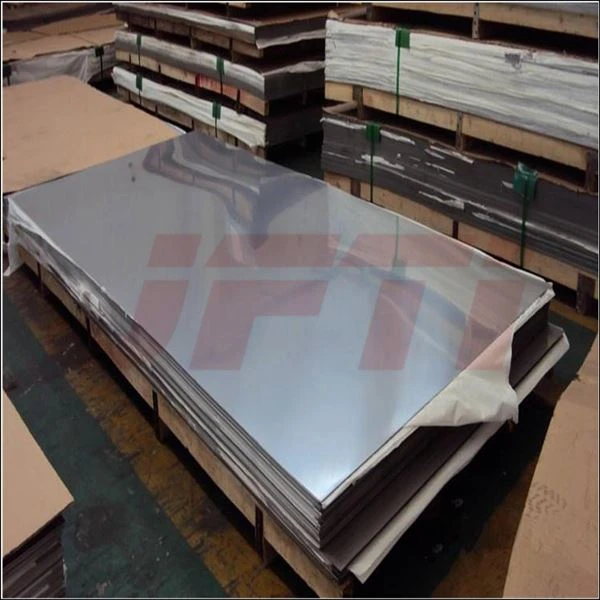

Gr 5 titanium plate detailed display
Delivery,shipping and serving
DHL airfreight & by sea transport according to cargo quantities
All Chinese seaports (preferable Shanghai)
FAQ
1. About MOQ?
The MOQ is 1 kg,but for better price you could order more to have more discount.
2. About OEM?
Welcome,you can send your own design and Logo,we can open new mold and print or emboss any Logo for you.
3. About product warranty?
We already carefully checked all our products before we pack them,and we are using the professional packing materials so normally you will receive your order in good condition.But due to long shipment may cause some damage,if any quality issue raised up,we will deal with it immediately.
4. How can we know the quality of your Gr 5 titanium plate ?
Firstly,if you need,we can send you a samples for your check, Secondly, We will check carefully all of the products before shipping and finally we if any quality issues we will check and solve the problem .
