Titanium Foil Sheet
1.Titanium foil sheet is a titanium plate, titanium strip,titanium sheet / roll with a thickness ≤ 0.1mm.
2.Payment terms: T/T, L/C or as required by customers.
3.Delivery time: 5-7 days.
Description
Production Introduction
For measuring the thickness of titanium foil sheet is by the weight per unit area, such as g / m.if the value is big, the greater the thickness. The width of titanium foil is obtained by cutting according to the user's requirements. However, the bigger of the width during manufacturing, the higher the productivity. The length of roll body determines the maximum width of rolled foil. The wider, thinner and harder the rolled piece is, the harder it is to roll.
Rolling is the most widely used manufacturing method of titanium foil sheet, which has high productivity, large scale and output. Basically, six high cold rolling mill or 20 high cold rolling mill are used for production.
Titanium foil sheet technical information
titanium foil sheet technical information
Grade
Gr 1,Gr 2,Gr 3,Gr 4,Gr 5,Gr 7,Gr 9,Gr 11,Gr12
Standard
ASTM B265,ASME SB265,AMS4911,AMS4907
Technique
Forged & milled processing
Size
Thk.0.03-0.5 X coil / ≦200mm with roll
Thk.0.8-2 X 1000 X ≦3000mm with roll
Thk.3.0-5.0 X 1250 X ≦200mm with roll
Thk.6.0-50 X 2500 X /≦7000mm with roll
Product Status
Acid alkali washing surface, sand blasting surface, bright surface.
Type
Titanium plate,titanium sheet,titanium foil
Application
Titanium foil sheet are widely used in chemical equipment, vacuum salt making, automobile industry, papermaking and textile industry, electric power industry, chemical fertilizer industry and seawater desalination industry.
Feature
Low density, high strength, strong corrosion resistance.
Tests
Physical property test, hardness test, chemical composition test,Ultrasonic testing, penetrant testing, appearance testing.

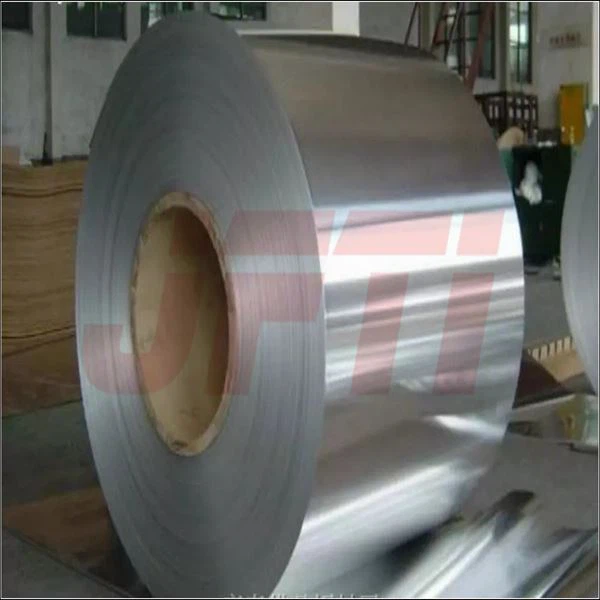

Products detailed display

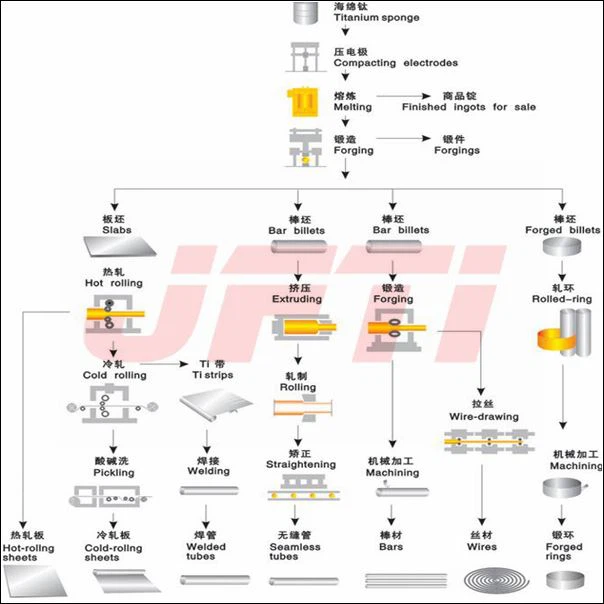

The production process of titanium foil sheet is as follows
Delivery,shipping and serving
DHL airfreight & by sea transport according to cargo quantities
All Chinese seaports (preferable Shanghai)

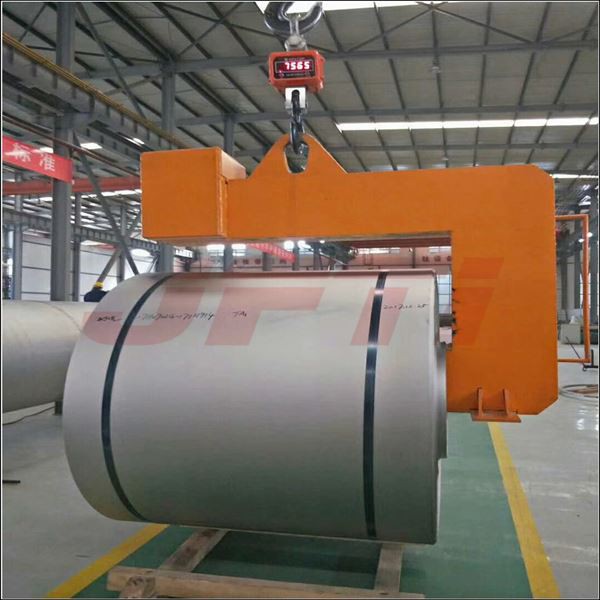

Our company & factory
JFTI has main products including titanium rod,titanium tube,titanium plate,titanium forgings,titanium wire,titanium filter,titanium CNC machined parts and other non-ferrous metals products etc.
We have production factory and warehouse are about 6000 square meters, we have more than 10 sets of professional large processing equipment,the company is located in Baoji city,known as “titanium valley “in China,so we have the best quality-products and very competitive price as our major advantages.At present, the company has R & D department, technology department, production department, sales department, foreign trade department, quality inspection department, etc. There are 10 professional technicians and more than 30 technicians and production workers.
