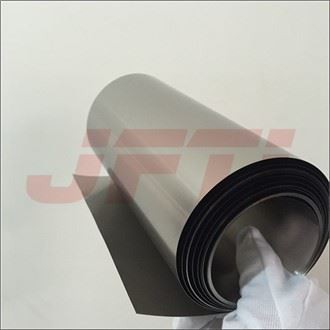

Gr 5 Titanium Foil
1.Gr 5 titanium foil has a series of advantages such as small density,high specific strength,good corrosion resistance,good toughness and weldability. It has been successfully applied in aerospace,
petrochemical, shipbuilding, automobile, medicine and other fields .
2.Payment terms: T/T, L/C or as required by customers.
3.Delivery time: 5-7 days.
Description
Production Introduction
|
Model No. : ASTM B265 |
Brand : JFTI |
|
Place of origin : China |
Application ：Industrial |
|
Shape ： foil |
Production process ： forged &rolled |
|
Packaging : Wooden box in export package |
Productivity : No limited |
|
Supply ability : No limited |
HS code : 8108903100 |
|
Qualification： |
Certificate issued by authorised qualified third-party including Bao Ti & China northwest institute for non-ferrous metals research. |
| Supply status | hot working status (R), cold working status (y), annealing status (m) |
| Thickness (mm) | ＞ 4.0-80.0 (hot rolling), 0.3-6.0 (cold rolling) |
| Width (mm) | 400-3000 (hot rolling), 400-1300 (cold rolling) |
| Length (mm) | 1000-8000 (hot rolled), 1000-4000 (cold rolled) |
| Delivery status | mirror, pickling, cold rolling, bright surface |
| Surface treatment | the plate surface shall be washed, polished and sandblasted with acid and alkali. |
The main components of GR.5 titanium alloy are: Fe ≤ 0.30, C ≤ 0.10, n ≤ 0.05, H ≤ 0.015, O ≤ 0.20, al5.5 ~ 6.8, V 2.5 ~ 3.5, Ti: allowance.
Mechanical properties of GR.5 titanium alloy: tensile strength σ B / MPa ≥ 895, specified residual elongation stress σ R0.2/mpa ≥ 825, elongation δ 5 (%) ≥ 10, reduction of area ψ (%)≥25。
Density: ≥ 4.51g/cm3
Surface quality: high precision, good finish, no dark and local water marks on the surface; No scratches, indentations, pits, cracks, peeling, scale, folding, delamination, metal and non-metal clips, alkali washing marks and other defects.
Surface finish: clean, dust-free, better service life.
Physical properties: better elongation and strength properties, no cracks after flattening and bending at high temperature.
Test: Mechanical property test, hardness test, chemical composition test,
Product detailed display
Gr 5 titanium foil manufacturing process
Hot forging is a forging process carried out above the recrystallization temperature of metal.
Hot rolling is a rolling process carried out at a temperature higher than the recrystallization temperature.
The cold rolling process in which the plastic deformation temperature is lower than the recovery temperature.
Annealing: a metal heat treatment process in which metal is slowly heated to a certain temperature, maintained for a sufficient time, and then cooled at an appropriate speed (usually slow cooling, sometimes controlled cooling).
Pickling: immerse the titanium foil in an aqueous solution such as sulfuric acid to remove oxide and other films on the metal surface. It is the pre-treatment or intermediate treatment of electroplating, enamel, rolling and other processes.
Gr 5 titanium foil - Product feature and application
It has been successfully applied in aerospace, petrochemical, shipbuilding, automobile, medicine and other fields .
Delivery,shipping and serving
DHL airfreight & by sea transport according to cargo quantities
All Chinese seaports (preferable Shanghai)
Our company & factory
We are the professional Gr 5 titanium foil factory with more than 6000 square meters factory and warehouse for large quantities of stocked titanium products.
We can provide the low price Gr 5 titanium foil with good quality to fulfill the ASTM,ASME and other international standards.
