Titanium Welding Wire

Full product information

Titanium welding wire divided into different grades as per titanium and other chemical content.

Product Name: titanium welding wire  erti-1 erti-2 erti-3 erti-4 erti-5 erti-7

Material: Gr1, Gr2, Gr3,Gr4,Gr5, Gr7

Specifications: φ 0.8～ φ 7.0

Shape: coil wire, straight wire

Executive standard :AWS,ASTM,AMS,JIS

Precautions for operation during welding operations of titanium welding wire:

1. Constructors and welders shall wear clean white gauze gloves (cotton gloves are strictly prohibited).

2. It is forbidden to touch or touch iron objects in the treated welding area.

3. Welding shall be carried out indoors as far as possible, and the ambient wind speed shall be ≤ 0.5m/s to avoid being affected by ventilation.

4. During welding, short arc welding shall be adopted as far as possible, small welding heat input shall be adopted, and the included angle between nozzle and weldment shall be maintained at 70 ~ 80 degrees.

5. When the nozzle is tack welded, the butt joint gap is generally about 0.5mm.

6. Each weld shall be welded at one time as far as possible. For the weld that must be welded, the interface shall be cleaned before welding, and the lap length of the weld flesh shall be 10 ~ 15mm.

7. During welding, the welding torch shall not swing left and right, and the melting end of the welding wire shall not move out of the gas protection area.

8. Air supply shall be carried out in advance during arc striking. The welding torch cannot be lifted immediately during arc extinguishing. Air supply shall be delayed until the temperature drops below 250 ℃.

9. The distance between the gas protection towing hood and the welding torch shall be the shortest, and the contact gap with the pipe wall shall be the smallest. During butt welding of pipes, in order to meet the requirements of single-sided welding and double-sided forming, the welding is divided into two times: one is back sealing welding (filling materials can not be used for back sealing welding), and the other is forming welding. During multi-layer welding, the next weld pass must be welded after the previous weld pass is completely cooled.

Application of titanium welding wire :

aerospace industry, ship industry, metallurgical industry, pharmaceutical industry, sports equipment, daily necessities and other fields.

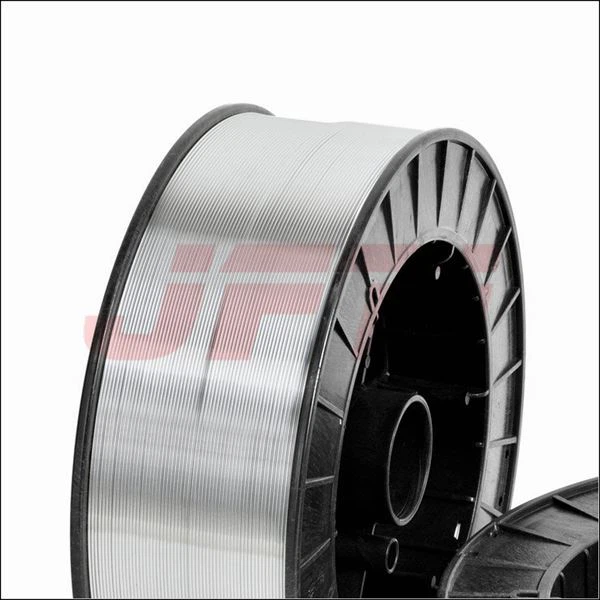

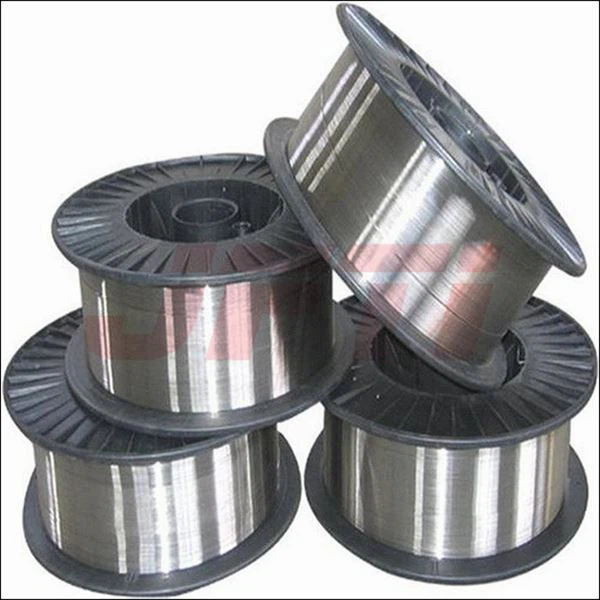

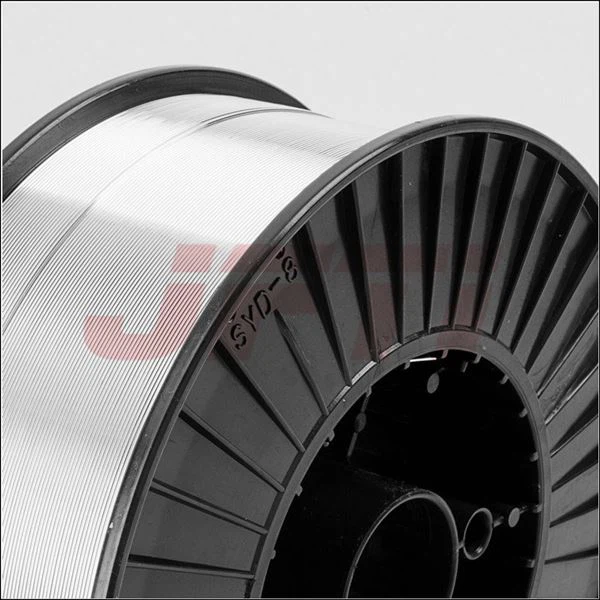

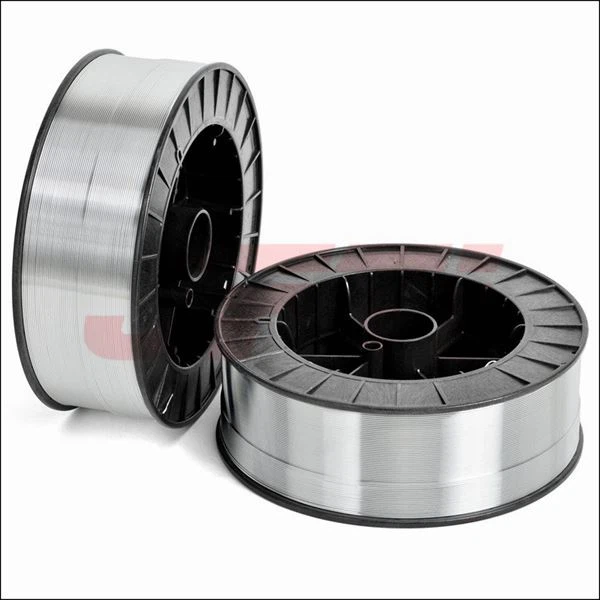

Titanium welding wire - product detailed display:

Deliver,shipping and serving.

DHL airfreight & by sea transport according to cargo quantities

All Chinese seaports (preferable  Shanghai)

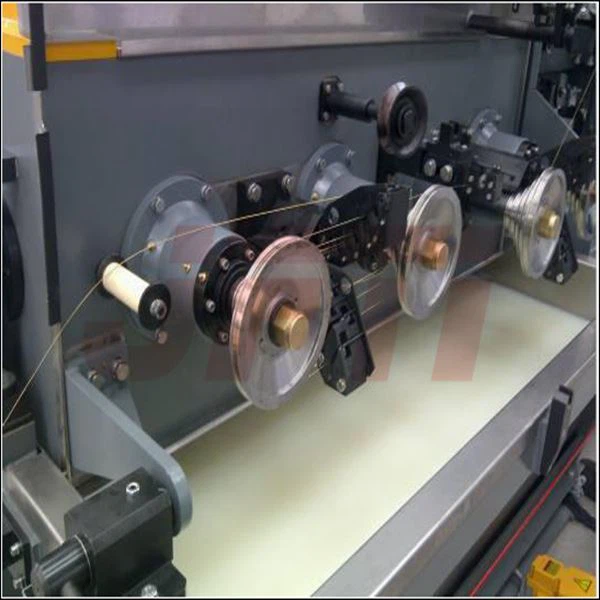

Our company & factory .

JFTI has production plant and finished product material warehouse are about 6000 square meters, with more than 10 sets of professional imported processing equipment, including 4500 ton and 1600 ton fast forging unit equipment, cold and hot finishing mill, finishing forging machine, coil leveling machine, cylindrical grinder, seven roll straightener, industrial electric furnace, annealing furnace, etc. At present, the company has R & D department, technology department, production department, sales department, foreign trade department, quality inspection department, etc. There are 10 professional technicians and more than 30 production workers.
