Gr1 Titanium Tube/pipe

1. Product introduction:Baoji Jufu Titanium Non-ferrous Metals Co.,Ltd is one of the leading companies for the manufacturing, supplying and exporting of Titanium Gr 1 pipes and tubes. We supply Titanium Tubes to our clients in various diameters, sizes, specifications, types, lengths, forms, etc. Titanium Gr 1 Pipes & Tubes are used in various industries like engineering, aerospace, chemical industries, military applications and also in the manufacturing of sports goods. It is also used in the medical, marine industry, Oil and gas exploration industries, Automobile industries and Hydrocarbon industries & refineries.
2. Delivery time: 5-7 days.
3. Payment terms: T/T or L/C.

Send Inquiry

Description

Production Introduction

The titanium grade pipes supplied to the customers are manufactured according to international quality standards. The pipes supplied are per the customer’s needs and specifications. Titanium is used because it is one of the strongest metals which possess qualities like high durability, strength, excellent corrosion resistance, etc. If you are looking for the best quality then nothing is better than Titanium Gr1 pipes and tubes. These are used in industries that require such pipes and tubes that can withstand all sorts of extreme conditions. Our company supplies them in different types such as seamless, fabricated and welded types.

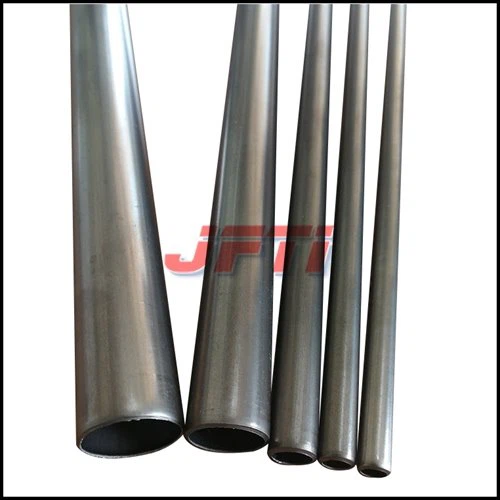

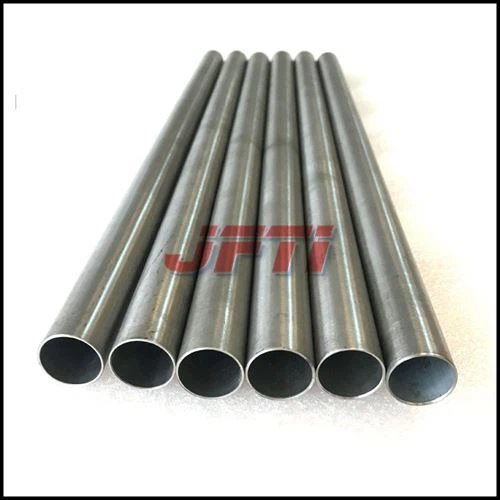

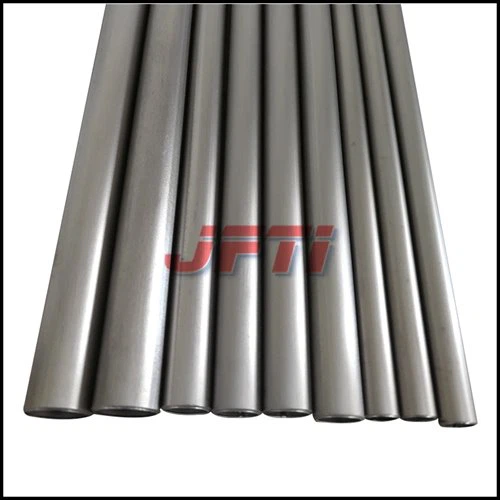

Product Photo Display

Specification of Titanium Gr 1 Seamless / Welded Pipes and Tubes

Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request

Titanium Alloys Gr 1 Pipes & Tubes Chemical Composition

C	Fe	H	N	O	Ti
max	max	max	max	max	max
0.1	0.2	0.015	0.03	0.18	99.5

Grade 1 Titanium Pipes & Tubes of Mechanical Properties

Hardness, Brinell	120	120	annealed
Hardness, Knoop	132	132	Estimated from Brinell.
Hardness, Rockwell B	70	70	annealed
Hardness, Vickers	122	122	Estimated from Brinell.
Tensile Strength, Ultimate	240 MPa	34800 psi
Tensile Strength, Yield	170 - 310 MPa	24700 - 45000 psi
Elongation at Break	24 %	24 %
Reduction of Area	35 %	35 %
Modulus of Elasticity	105 GPa	15200 ksi	In Tension
Compressive Modulus	110 GPa	16000 ksi
Poisson's Ratio	0.37	0.37
Charpy Impact	310 J	229 ft-lb	V-notch
Shear Modulus	45 GPa	6530 ksi

Physical Properties of Grade 1 Titanium Alloy Pipes and Tubes

Physical Properties	Metric	English
Density	4.51 g/cc	0.163 lb/in³

Titanium Alloy Gr 1 Pipes & Tubes Application Industries

Our Titanium Gr 1 Pipes & Tubes are used in a wide range of applications and various industries. Below are a few of them:

Petrochemical Industry
Oil and Gas Industry
Chemical Industry
Power Plant Industry
Energy Industry
Pharmaceuticals Industry
Pulp & Paper Indusry
Food Processing Industry
Aerospace Industry
Refining Industry
